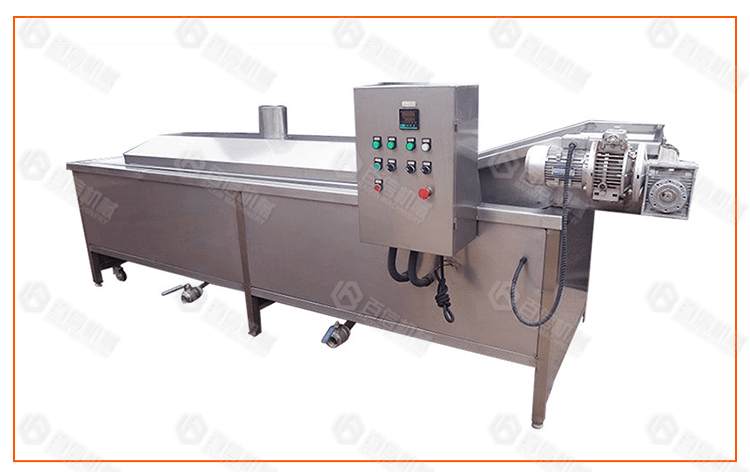

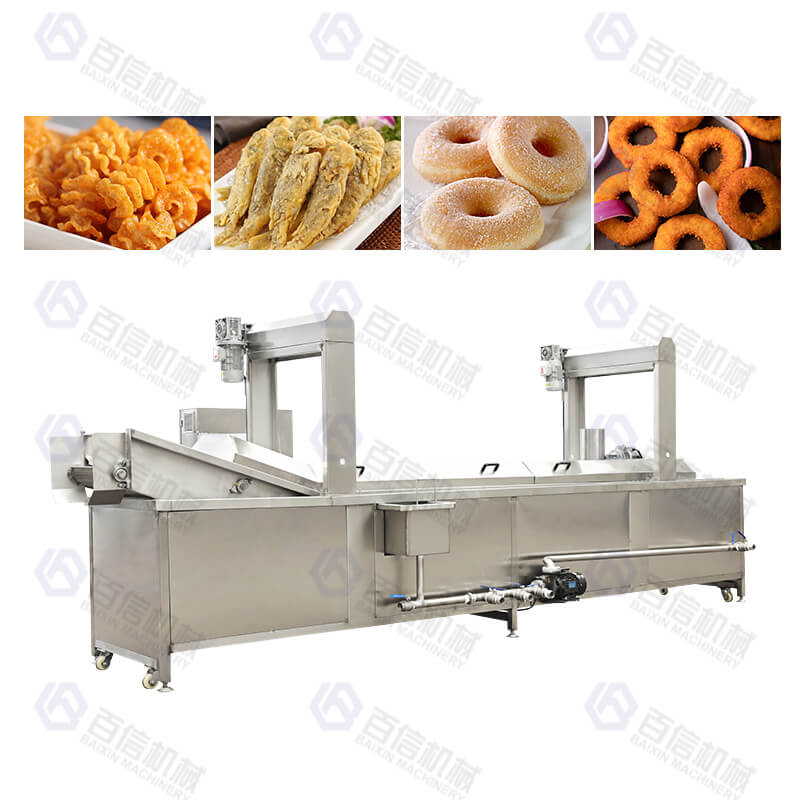

Continuous Frying Machine

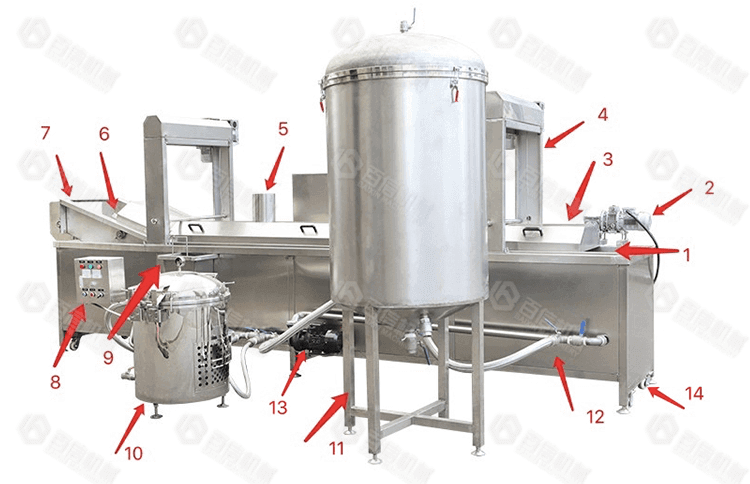

This automatic continuous fryer machine is widely used in restaurant and all food industrial, also an indispensable machine in kinds of snack processing line. It consists of automatic belt conveying system, automatic lifting system, oil adding system, oil filtering system and automatic temperature control system.

1	Frying product	Snacks, nuggets burger, fish, peanuts and so on
2	Heating method	Electricity/ Gas/LPG/ Diesel/ Wood
3	Rated power	Different based on model and products
4	Frying temperature	0-180℃
5	Frying temperature range	0-300℃
6	Temperature precision	±1℃
7	Frying time	1-5mintues adjustable
8	Frying time control range	frequency adjustable
9	Mesh belt width	300mm/400mm/600mm/800mm/1000mm/1200mm

1	Conveyor belt speed is adjustable for different frying time according to different products.
2	Electricity, gas or diesel, and also electromagnetism as power source. Gas or diesel model uses the most advanced and reliable Italy imported Riello brand burner with the advantage of fuel economy, low noise, prevent heating loss, high efficiency.

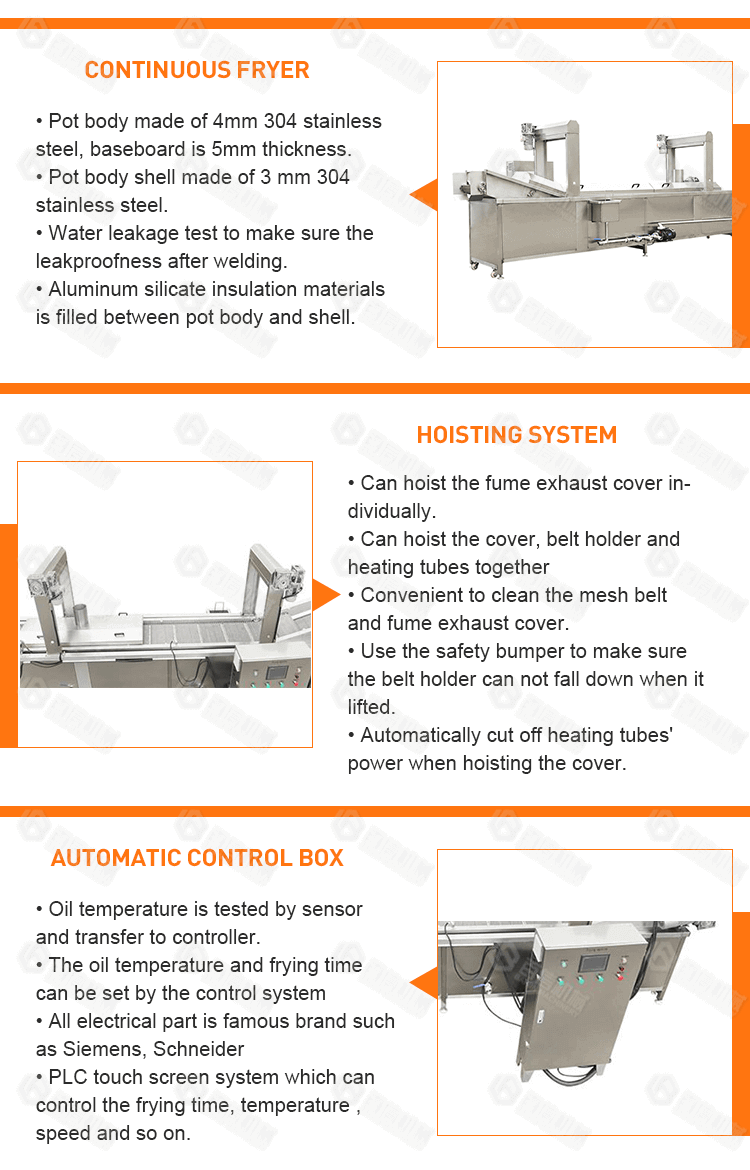

3	Automatic lifting system for easy cleaning the machine and save human power.

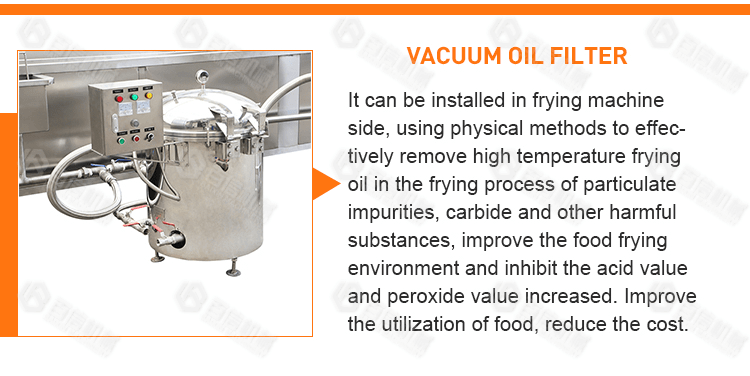

4	Oil circulation system to continuously filter oil residue and extend the service life of cooking.
5	Oil level alarm and automatic oil temperature control (0-300°C).

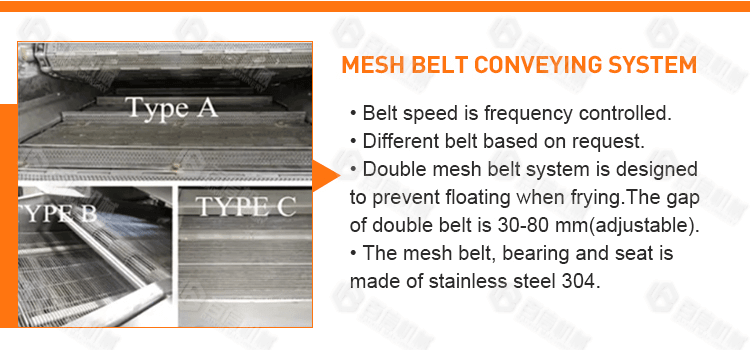

6	Double belt design to prevent floating, ensure complete and perfect frying effect.
7	Scrapers fixed on the belt to make the products come out easily.
8	Fire-extinguishing system can be added according to your demand.
9	PLC touch screen control panel.

Model	Dimension	Weight	Power	Yield(kg)
			(electric heating)
BX-2500	2500*800*1300mm	500kg	24kw	250
BX-3000	3000*1200*2200mm	800kg	80kw	300
BX-4000	4000*1200*2200mm	1000kg	120kw	400
BX-5000	5000*1200*2200mm	1200kg	180kw	500
BX-6000	6000*1200*2200mm	1500kg	200kw	600
BX-8000	8000*1200*2200mm	2000kg	220kw	800

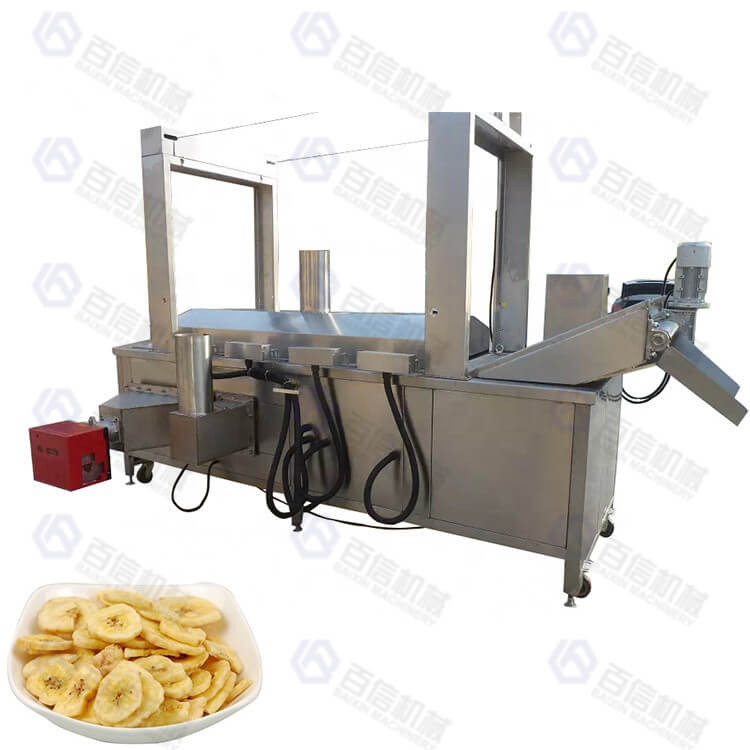

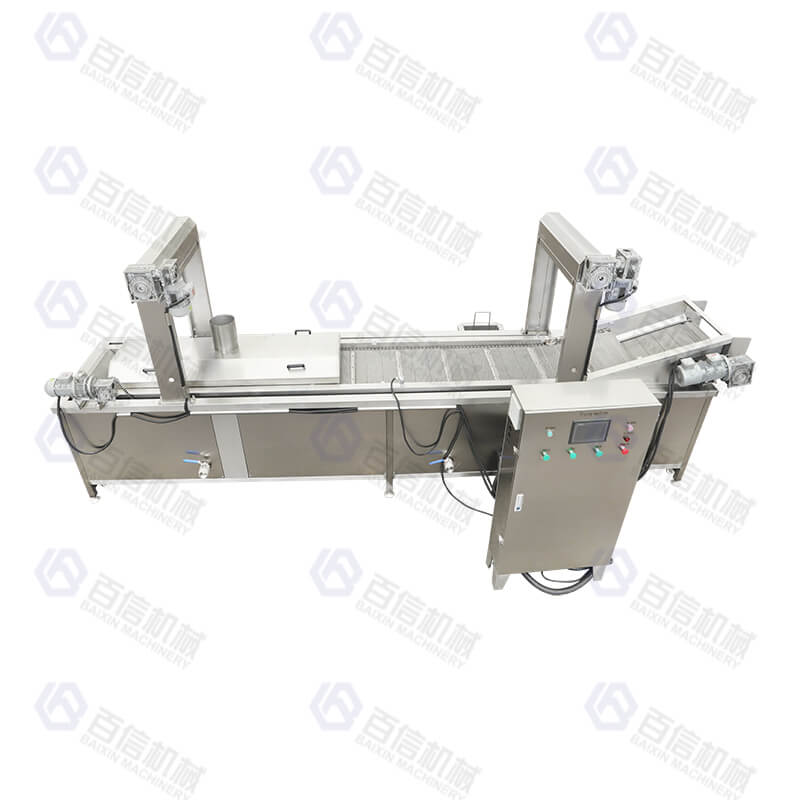

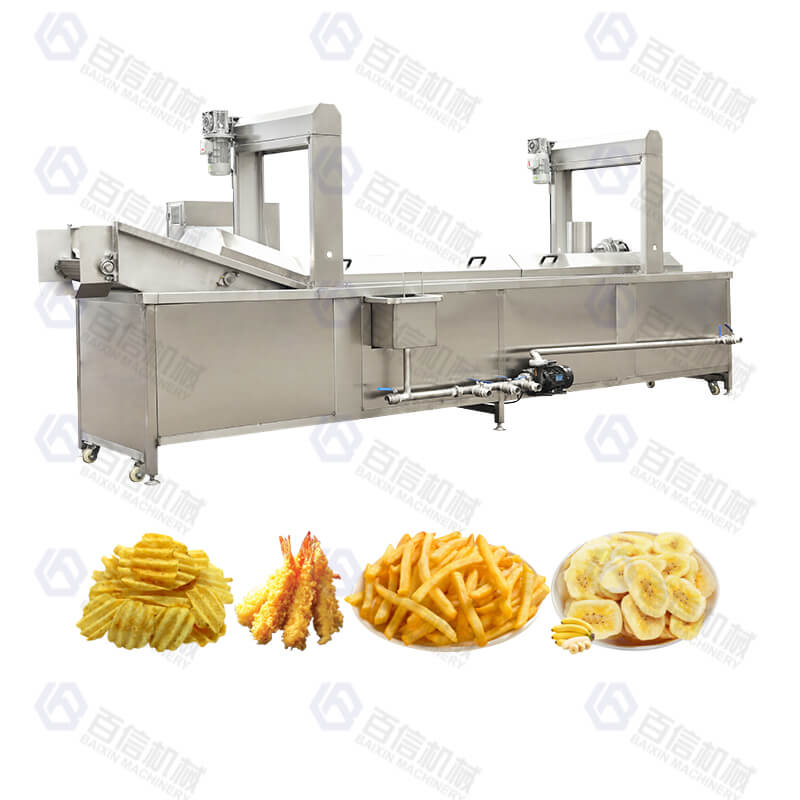

This continuous fryer machine is suitable for various kinds of fried food like meat pie, chicken nuggets, potato chips, banana chips, spring rolls, peanuts and many other snacks.It is widely used in food industry with large capacity. This continuous frying machine always works together with other machines like deoiling machine to combine one whole production line.
