Small & Medium output ginger powder processing line

Small & Medium output ginger processing line

Support customization ginger powder processing

Support customization ginger powder processing line

Components	Ginger cleaning and peeling machine / Ginger slicer / Ginger dryer / Ginger grinder / Ginger powder packaging machine etc.
Core advantages	Flexible Configuration/ Easy Operation/ Support Customization/ Small & Medium Output

Get a Quote Send E-mail

Share:

Products

Continuous Mesh belt dryer

Heat pump dryer

Microwave dryer

Freezing dryer machine

Fruit and vegetable processing machine

Vacuum frying machine

Product Description Technical parameter Field of application video

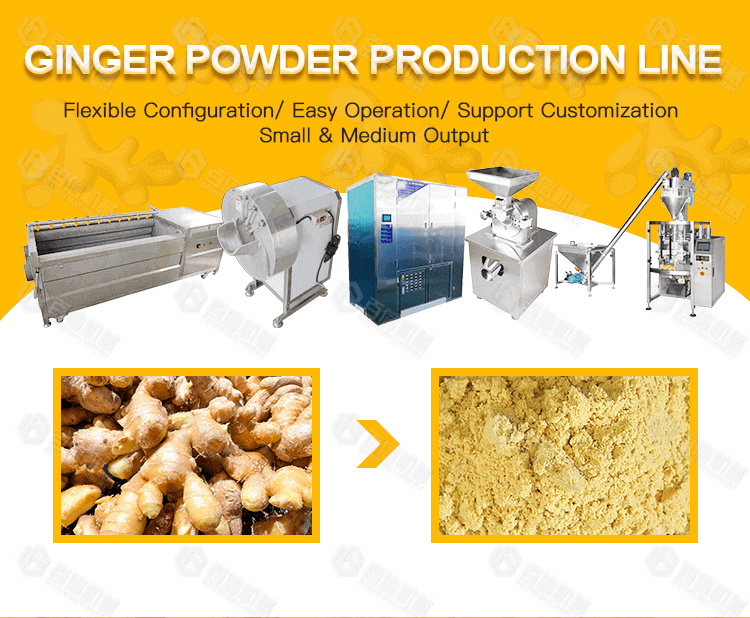

Introduction of ginger powder production line

The ginger powder processing line uses ginger as raw material, and processes ginger into ginger powder through processing techniques such as cleaning, peeling, slicing, drying, and grinding. Meet the culinary needs of different households, restaurants and food processing plants.
Processing ginger into ginger powder can increase the added value of ginger in the ginger planting industry, and reduce the ginger loss and storage and transportation costs caused by ginger price fluctuations. This is the best choice for the ginger powder business!

Components of ginger powder production line

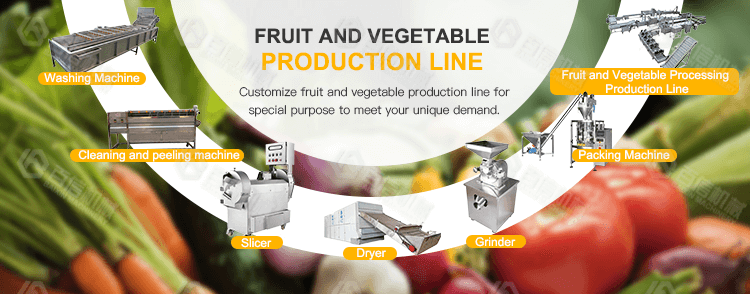

Ginger powder processing line flow chart

Ginger cleaning machine: It is used to clean the dirt, dust and other impurities attached to the surface of ginger root. The ginger is rolled, washed and transported under the action of high pressure water flow and powerful air bubbles, and then sent to the next process.

Ginger peeler: for cleaning and removing the epidermis. The specially designed screw feeding structure is adopted to realize fully automatic work.

Ginger slicer: The thickness of ginger slices is uniform, and the slice thickness can be adjusted as needed.

Ginger air dryer: effectively remove the moisture on the surface of ginger slices after cleaning, greatly shorten the drying cycle, suitable for assembly line operation.

Ginger slice dryer: adopts multi-layer moving stainless steel mesh belt, automatic loading and unloading, saving a lot of labor costs. Flexible heat source selection: Coal, wood chips, natural gas, diesel, propane, electricity etc.

Ginger powder making machine: Grind dried ginger slices to a fineness of 10-120 mesh. The ginger grinder is air-cooled or water-cooled and can work continuously for a long time.

Ginger powder packaging machine: Generally speaking, ginger powder business requires automatic ginger powder packaging equipment. The ginger powder packaging machine has a PLC control system, which is intelligent and controllable, and can be quickly adjusted according to customer packaging requirements. Packaging weight and quantity are automatically adjusted.

Technical parameter

50-100kg/h small output ginger powder processing line
Number	Name	Power	Size	Output
1	Cleaning and peeling machine	0.75KW	690430860mm	100kg/h
2	Slicer	1.1KW	690560880mm	300kg/h
3	Dryer	3KW	21009302100mm	50-100kg/h
4	Grinder	5.5KW	7506001260mm	30-150kg/h
5	Packing Machine	1.6KW	7007501650mm	30-60 packs/min
The ginger powder processing line can be equipped according to the user's requirement and the production demands.

Field of application

Most of the machines in the line are not only suitable for ginger, but also for other fruits and vegetables.
