Semi-automatic French Fries Production Line_Henan Baixin Machinery
FAQ
Home > Products > Fruit and vegetable processing machine

Semi-automatic French Fries Production Line

Capacity Output capacity available from 30kg/h, 50kg/h, to 100kg/h, 300kg/h, to 1000kg/h, 2000kg/h
 Components Potato washing and peeling machine/Potato cutting machine/Bubble washing machine/Blanching machine/Continuous frying machine/Vibration deoiling machine/Freezing machine/Automatic weighing packing machine
 Core advantages  Processing flow can be customized/
The size of french fries are adjustable/
All equipment are made of food grade SUS304 stainless steel.

Share:
Introduction of semi-automatic french fries production line

Baixin has 15 years of experience in customized solutions for potato processing lines. Since its establishment, Baixin has been committed to providing the best potato processing solutions to users around the world. We provide one-stop turn-key project and make different solutions for different demands.
1. We are a professional manufacture to produce french fries making machines, potato chips making machines.
2.Process capacity including input capacity and output capacity and Process flow can be customized according to your need.
3.About plant scale, we can do full automatic line (finished capacity 100kg/h to 2000kg/h), it can improve production efficiency and save manpower, it is very suitable for the factory and business with a certain scale and starting business.
4.Small scale semi-automatic production line(finished capacity 30kg/h to 300kg/h) and its scale is not so big like full automatic line and ask less manpower, its cost is lower than full automatic line, its production method is very flexible, and suitable for a small-scale business or a company that has just begun to enter the industry.
5.All equipment in the production line is made of 304 stainless steel.
6.Heating method: Electric heating, Gas heating or Electricity heating and gas heating both in one.
7.The size of French fries and the thickness of potato chips are adjusted.
8.We can design floor plan of complete line you need depending on your area' s size.
Components of semi-automatic french fries production line
No. Machine Name Function Advantage
1 Potato Washing and Peeling Machine Thoroughly washing and peeling the potatoes 1.  Washing and peeling capacity can be customized.
2. The length of brush can be customized.
3.We use high quality brusher,even old potatoes that are hard to peel can be peeled well.
4.Spraying system to clean the potatoes.
5.Spiral design to make sure automatic discharging.
6. The discharge speed can be adjusted.
7. The whole machine is made of 304 stainless steel.
2 Potato Cutting Machine Cutting the potatoes into fries,  sizes adjustable from 7*7 to 12*12mm 1.  The strips' size such as 7*7mm, 8*8mm, 10*10mm and custom made can be changed by adjusting the blade.
2.Cutting surface is smooth without damage.
3.The whole machine is made of 304 stainless steel, High speed stainless steel blades.
3 Blanching Machine Through 60-95 degree hot water blanching to inhibit the activity of the enzyme and maintains the original vivid color of the fries 1.You can use gas, electricity or diesel as power for this machine depending on your needs.
2.It can effectively protect original vivid color of the potato strips.
3.You can add additives during blanching process.
4  Dewatering Machine Remove the surface water The de-water time is adjustable.
5 Frying Machine For quick frying the fries around 40 seconds in 180°oil to avoid the adhesion and extend the shelf life 1.Automatic lifting system, easy to clean.
2.Double mesh belt transmission to avoid the chips floating.
3.Oil filter and recycling system to automatically and continuously filter the oil residue to extend the service life.
4.Electric or gas heating.
6 Deoiling Machine Remove the surface oil The de-oil time is adjustable.
7 Freezing Machine Through mechanical vibration and wind pressure, the fluidized quick freezer floats products on stainless steel mesh belt, frozen products and prevent adhesion, achieve IQF Customized according to customer needs
8 Automatic Weighing Packing Machine For packing the finished frozen french fries It can fill Nitrogen automatically, automatic weighing, automatic sealing and automatic packing.

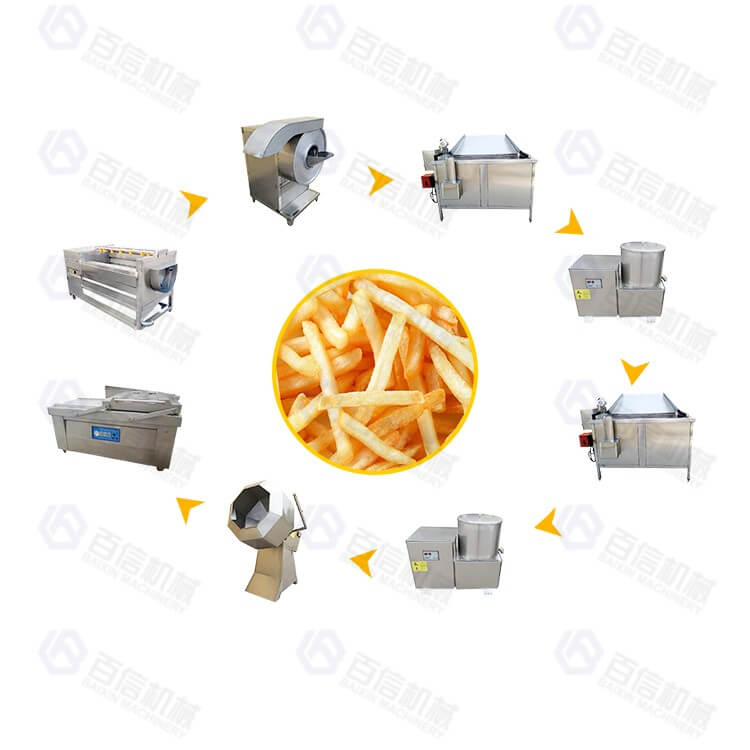

Semi-automatic french fries production line flow chart


This set of production line is a new type of french fries production line developed and developed by our company. This production line is made of high quality 304 Stainless Steel. PLC electrical control,  safe and efficient.The production line adopts advanced technology, the output is high, and the ex-factory price is directly sold. This is the best choice for businesses and the most ideal device.

Advantage of semi-automatic french fries production line

Technical parameter
300-500kg French Fries Production Line
No. Machine Name Powder Size Price(Dollar)
1 Potato Washing and Peeling Machine 4.37kw 3400*900*1400mm 6900
2 Potato Cutting Machine 1.5kw 750*500*1100 1230
3 Blanching Machine 40kw 1200*700*950 3300
4 Dewater Machine 2.2kw 1600*1350*1500 3000
5 Frying Machine 60KW 1900*1600*1700 4800
6 Deoil Machine 2.2kw 1600*1350*1500 3000
7 Quick Freezer 25kw 7100*3300*3000 38500
8 Packing Machine 4kw 1700*900*1450 4100
Support customization according to customer requirements. 64830
Field of Application
Potato chips, french fries, banana chips and other fruits, vegetables and meat products.
