Vegetable Dryer Machine
Vegetable Dryer Machine
Vegetables play an important role in our daily diet. Eating vegetables regularly can enhance our immunity and resist aging. However, fresh vegetables have a short shelf life, and in rainy weather, the vegetables may rot. Therefore, drying vegetables is not only good for preservation, but also provides more options for cooking methods. Some dried vegetables have entered the market and are deeply loved by people. So what are vegetable dryer machines? How to choose a suitable vegetable dryer machine? Now, Baixin Dryer Company will share with you several vegetable dryer machines that are energy-saving, environmentally friendly, convenient, and have very good drying color and luster quality.
How to choose a suitable vegetable dryer machine?
Vegetable dryer machine are divided into three types: mesh belt vegetable dryer, vegetable dryer room and all-in-one vegetable dryer.In terms of output, the continuous mesh belt vegetable dryer machine is suitable for manufacturers with large output. Its output is 300-2000kg/h. The output of the vegetable dryer room machine is smaller than that of the mesh belt vegetable dryer machine, and the output is 100-5000/batch. The output of the all-in-one vegetable dryer machine is the smallest, and its output is 100-1500/batch. It is suitable for agricultural plants or small processing plants. Oven length and mesh belt layers can be customized. We can choose and match them reasonably according to our own processing requirements.

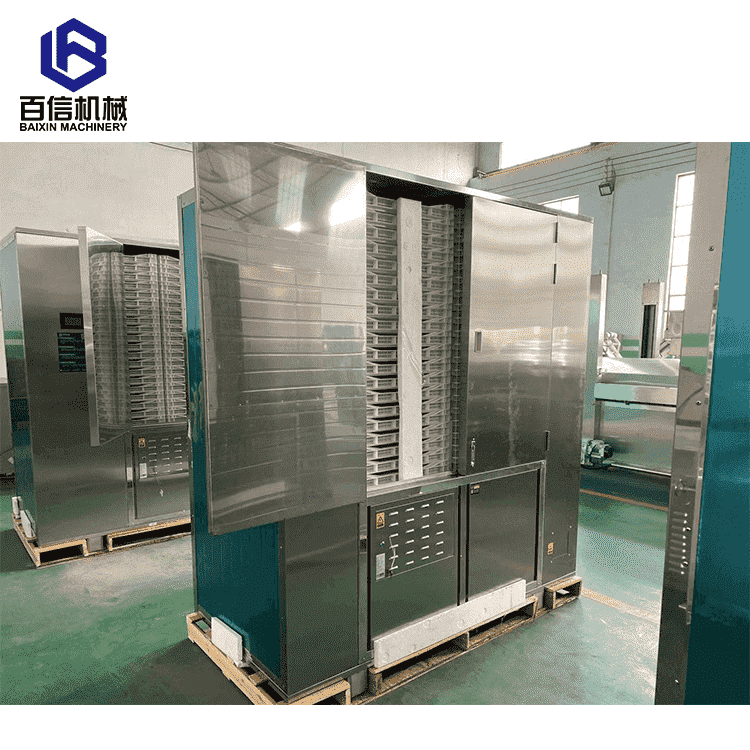

1. All-in-one vegetable dryer machin
The first vegetable dryer machine is the all-in-one vegetable dryer machine with the smallest yield.The drying principle is the same as that of the vegetable dryer room machine. The all-in-one vegetable dryer machine is equipped with a cart with trays and tray racks. When drying vegetables, we put them in trays, put them on the tray racks of the cart, and then push them into the vegetable drying chamber for drying. The heat source of the vegetable integrated dryer is air energy. The heat in the air is absorbed by the heat pump compressor. After compression and release, a large amount of high-temperature hot air can be obtained, so as to achieve continuous and uniform drying and processing of vegetables. The operation of this all-in-one drying unit is relatively simple, simply plug in and dry.
Components of all-in-one vegetable dryer machine
One set all-in-one vegetable dryer machine contains: power jack, water outlet,exhaust air outlet, supporting wheels, PLC controller pancl, door lock, observation window,circulating air inlet, outlet for hot and dry air, PP tray, stainless steel tray, supporting racks for trys. The vegetable all-in-one machine has compact structure, good energy-saving effect, wide application range, high drying quality, convenient operation, simple installation and disassembly. It is the best drying equipment for small businesses, drying experiments and scientific research. The user only needs to connect the power to use, it is the easiest to operate vegetable dryer.
Technical parameters of all-in-one vegetable dryer machine
| All-in-one vegetable dryer list | ||||||||
| type | machine size(MM) | Capacity (KG) | power | total power（kw） | Qty of cart | Qty of tray | cart size(MM) | tray size(MM) |
| 1P | 1180×680×1800 | 50-80 | 1 | 1 | — | 15 | — | 600×800 |
| 3P | 2100×930×2100 | 120-300 | 3.5 | 3.5 | — | 40/60 | — | 600×800 |
| 8P | 4000×1960×2050 | 650-1000 | 8 | 8 | 8 | 232 | 600×800 | 600×800 |
| The drying machine can be equipped according to the user's requirement and the production demands. | ||||||||
Advantages of all-in-one vegetable dryer machine
1. Stainless steel 304 material. The whole machine uses stainless steel material, can work a long time, and keep better heat preservation, bottom have wheeler, can move easily.2. Great energy saving. Heat pump system design, low energy consumption, can save 75% energy than traditional electricity element heating.
3. Wide application easy operation. Fit for wide application, seafood, fruit, vegetable, spice, herbs, etc all can use it to dry.
4. Gentle drying. Temperature range 40-80°C, low temperature dehydrate processing can better keep material nutrition, during drying, no need to move the machine.
2. Vegetable dryer room machine
The second type of dryer is the vegetable dryer room.The vegetable dryer room machine is equipped with a trolley with trays and tray racks. When we dry the vegetables, we put the vegetables in the tray, on the tray rack of the cart, and push it into the vegetable drying chamber to dry. Vegetables are putted on the shelf car and enter the closed cycle drying room for drying without any pollution in the process. The heat source of the vegetable dryer room is air. The heat in the air is absorbed by the heat pump compressor. After being compressed and released, a large amount of high-temperature hot air can be obtained, so as to achieve uniform drying and processing of vegetables.
Components of vegetable dryer room machine
One set vegetable dryer room machine contains: heat pump dryer host, dryer chamber, fan frame with fan, trolley with tray. The dryer chamber is used 100mm polyurethane insulation board, supporting 304 stainless steel trolleys and trays. Put the vegetables into the material tray, insert the material tray into the material cart and push it into the drying room, and close the sealing door to start drying production. The drying temperature range is 65 ℃ - 85 ℃, and the drying temperature is divided into different temperatures, and the temperature is gradually lowered. Generally, the drying time is about 8-10 hours to complete a batch.
The working principle of vegetable dryer room machine
The vegetable heat pump dryer machine uses the reverse Carnot principle to let the hot air circulating blower dry the vegatable. Heat Pump Dryer Compressor Heat Exchanger Blocked Radiator (External to Machine). Compressor and other equipment make up the refrigerant circulation system. The fan impeller rotates, the outside air enters the oven, passes through the heater, forms hot air, and then enters the studio through the gap of the air distribution plate, and a large amount of hot air in the circulating flow continues to enter the new air inlet for supplementation. The moisture discharged after recovery is discharged from the exhaust port. The whole cycle makes the vegatable heated evenly and achieves the purpose of drying.Determine different temperature, time, color and moisture content during drying according to different varieties. It is better for the vegetable dryer to use the air energy heat pump drying system, and the heating of the air energy is a slow increase, which is more reasonable for the drying of vegetables, and can maintain the original tissue fibers and nutrients of the vegetables, and through the compressed air , The whole process of extracting air heat energy does not contain harmful substances, and it is also more energy-saving and environmentally friendly.
Technical parameters of vegetable dryer room machine
| heat pump vegetable dryer list | ||||||||||
| type | machine size(MM) | Capacity (KG) | power | Qty of fan | fan power | total power（kw） | Qty of cart | Qty of tray | cart size(MM) | tray size(MM) |
| 3P A | 3500×2200×2200 | 200-400 | 2.25 | 6 | 0.25/pc | 3.75 | 6 | 78 | 670×810 | 600×800 |
| 8P A | 5300×2200×2800 | 450-750 | 6 | 12 | 0.37/pc | 10.44 | 6 | 156 | 1210×870 | 600×800 |
| 15P | 7500×3000×2800 | 900-1500 | 11.25 | 12 | 0.55/pc | 17.85 | 12 | 312 | 1210×870 | 600×800 |
| 1P D | 1180×680×1800 | 50-80 | 1 | — | — | 1 | — | 15 | — | 600×800 |
| 3P D | 2100×930×2100 | 120-300 | 3.5 | — | — | 3.5 | — | 40/60 | — | 600×800 |
| 8P D | 4000×1960×2050 | 650-1000 | 8 | — | — | 8 | 8 | 232 | 600×800 | 600×800 |
| The drying machine can be equipped according to the user's requirement and the production demands. | ||||||||||
Advantages of vegetable dryer room machine
1 Wide application. Suitable for vegetable, fruit, seafood, spice etc different kinds of material.2 High drying capacity. Each hour can drying 3-4kg water.
3 Better drying effect. Can better keep material shape , color , nutrition etc.
4 Simple operating. PLC touch screen control panel , can set up temperature, humidity in advance
5 Low energy consumption. Heat pump system, can save 70% energy.
Other application areas of vegetable dryer room machine
Heat pumps dryer machine can be used in many applications, in addition to drying vegetables can also be used in agriculture, industry, seafood, grain, herbal medicine, construction, paper products, condiments, mineral industry, etc.1. Dried vegetables such as radish, lettuce, pumpkin, carrot, spinach, cassava, etc.
2. Fruits such as apples, lemons, mango slices, dried longan, dried longan, etc.
3. Dried meat such as sausage, beef, duck, ham, etc.
4. Others it can dry noodles/wooden/incense/herbs/floss etc.
Your product is not listed above? We are ready for any new challenge! Contact us for a free product test!
3. continuous mesh belt vegetable dryer machine
Lastly, let's take a look at the continuous mesh belt vegetable dryer machine with the largest output. Mesh belt vegetable dryer machine have a wide range of heat sources such as coal heating, gas heating, steam heating, biomass pellet heating or electric heating. It is a multi-layer continuous drying structure. When drying vegetables, just put the vegetables in the feeding port, and the vegetables will enter the dryer with the feeding conveyor for drying.Vegetables are dried and dehydrated layer by layer from top to bottom. The drying speed is fast and the production efficiency is high, which is very suitable for the drying and processing of large quantities of vegetables.
Components of continuous mesh belt vegetable dryer machine
One set continuous mesh belt vegetable dryer machine contains: homogenizer, feeding conveyor,dryer host, output conveyor, observation door, heat source, air intake system, control panel. The vegetable dryer consists of 4 parts, namely the feed conveyor, the main machine of the mesh belt vegetable dryer, the heat source and the discharge conveyor. The reformer provides heat, and the through-flow mesh belt vegetable dryer is the main body of the drying equipment, which consists of a cabinet and multi-layer conveyor belts; the electrical control system controls the start, operation and stop of the entire equipment. With the cooperation of other auxiliary components, the drying equipment completes the drying and discharging process of food, and realizes the drying process of food drying.
The working principle of continuous mesh belt vegetable dryer machine
Baixin continuous mesh belt vegetable dryer machine is a continuous production drying equipment. The main heating methods are electric heating, steam heating and hot air heating. Its main working principle is to distribute the material evenly in the network. Through the operation of the machine, the vegetable moves in the dryer, and the hot air extracts the water vapor of the vegetable. So as to achieve the purpose of drying. The working temperature is 40-120 degrees Celsius. The drying cycle is 1-5 hours. Mainly used for agricultural and sideline products such as fruits and vegetables, Chinese herbal medicines, etc. The equipment is easy to operate, saves time, has a healthy drying process, and protects the environment.
Technical parameters of mesh belt vegetable dryer machine
| continuous mesh belt dryer list | |||||||
| Model | operation temperature | drying time | thickness of the material | the size of motor | capacity | heat source | total power |
| BX-2*6M | 40-120℃ | 0.5-5h | 50-200mm | 6*2*2.5 | 200-400kg/h | electricity | 66.5kw |
| natural gas/propane | 12.22kw | ||||||
| coal/wood chips | 13.72kw | ||||||
| steam | 11.22kw | ||||||
| BX-2*9M | 9*2*2.5 | 500-800kg/h | electricity | 79.76kw | |||
| natural gas/propane | 20.12kw | ||||||
| coal/wood chips | 23.12kw | ||||||
| steam | 16.62kw | ||||||
| BX-2*12M | 12*2*2.5 | 1000-1500kg/h | electricity | 153.12kw | |||
| natural gas/propane | 33.12kw | ||||||
| coal/wood chips | 36.12kw | ||||||
| steam | 25.62kw | ||||||
| door in Color steel,baffle in Galvanized,the main frame in Carbon steel. | |||||||
Other application areas of continuous mesh belt vegetable dryer machine
The mesh belt vegetable dryer machine is of good quality, the inner and outer dryers are made of stainless steel or paint material. High temperature resistance, corrosion resistance, high strength, no rust, suitable for drying vegetables, but also suitable for large-scale continuous dehydration and drying of food series, fruit series, pharmaceutical series, agricultural and sideline products.
The above is a brief introduction and technical parameters of the three vegetable dryer machines of Baixin dryer machine company. The vegetable dryer machines produced by our company support customization. If you are interested in our dryer or want to know more about the vegetable dryer machine and its price. Please feel free to contact us, and we will get you a satisfactory answer and solution according to your requirements.
Vegetable dryer machine vedio：
