How to Dry Mosquito Coil/Dehydrate Mosquito Coil in a Dehydrator

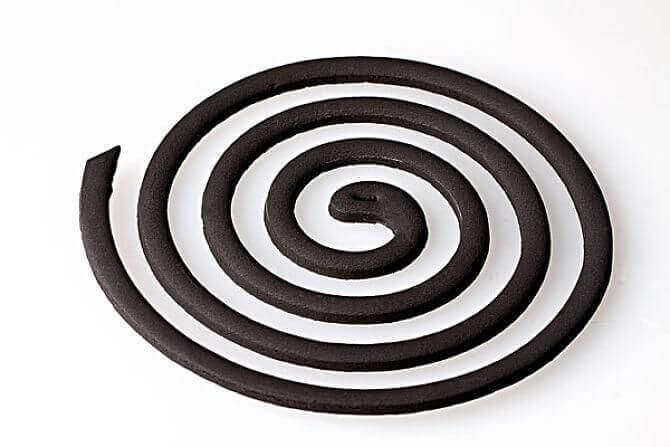

Introduction to mosquito coil：
Mosquito coil is a kind of mosquito repellent. The smoke emitted by the drug after it is ignited can drive away or kill mosquitoes. The smoke burned by mosquito coils contains four types of substances harmful to the human body, namely ultrafine particles-soot (particulate matter with a diameter of less than 2.5 microns), polycyclic aromatic hydrocarbons (PAHs), carbonyl compounds (such as formaldehyde and acetaldehyde) and benzene. At the same time, in addition to these four types of obvious harmful substances, there are a large number of organic fillers, binders, dyes and other additives in the mosquito coils to make the mosquito coils smolder without flames.
Mosquito coil drying process：

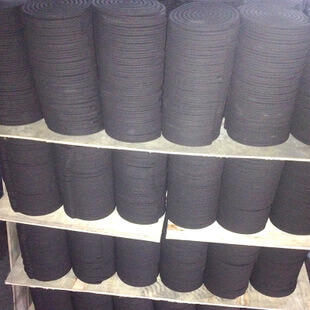

The drying temperature of the mosquito coil is controlled at 52℃-55℃. The moisture content of the mosquito coil is 40%. A piece of mosquito coil weighs 50 grams. After drying, it becomes 30 grams. A tray is 900 mm long and 450 mm wide. Put the mosquito coils in. 18 pieces, 40 mm between two layers of pallets. Some fixed drying rooms are 8 meters long, 4 meters wide, and 2.2 meters high. More than one thousand pallets can be placed at a time. The total weight of mosquito coils is more than 1 ton. After drying, dehydration is required. 830 kg, the main engine dehydration 150 kg per hour, a batch of 6 hours.The transformation of the assembly line is highly complex. Generally, the previous drying system is made of bricks and has no heat preservation. Therefore, it is necessary to carry out heat preservation transformation first, and then calculate the heat demand value according to the capacity of the total production line, which must be considered. Heat loss, and then obtain the dehumidification capacity according to the total amount in the mosquito coil transmission range of the original production line, and then match the total power of the dehumidification equipment according to the total dehumidification capacity, which can be used to separate the heating equipment and the dehumidification equipment, or use integrated heating and dehumidification For equipment, the latter system control is more precise and easy to operate.
Recommendation of mosquito coil dryer/drying machine
Commercial 100-3000kg/h large amount of dehydration wide application and easy operation
Heat pump drying machine use the principle of inverse Carnot cycle. It absorbs low-temperature heat energy in the air, which becomes high-temperature heat energy after efficient heat collection and integration by the heat pump system, and is transported to the drying room for cyclic heating and drying of materials.It refers to exhausting the hot and humid air in the drying room directly to the outside of the drying room through dehumidification device, and then replenishing natural fresh air.
Hot air circle drying machine belongs to high temperature heat pump unit. Its working principle is: the working fluid of the heat pump is compressed by the compressor, becomes high temperature and high pressure gas, enters the condenser, condenses and liquefies the heat, and is used for air heating in the drying room. The moisture in the material is vaporized and evaporated by the form of hot air, and the evaporated water vapor is discharged by the moisture discharge system, thereby achieving the purpose of drying the drying material.
Mosquito coil drying video：
