Garlic Processing Plant/Garlic Processing Unit

Garlic has a wide range of uses, not only as a condiment, but also has a very high medicinal value, and is an indispensable food in people's daily life.

The garlic deep processing business has always been very promising. In particular, dried garlic flakes and garlic powder processing plants have always had a large market due to the ease of long-term storage and portability. So how to start a garlic processing plant?

To start a garlic processing business, you must first know the garlic processing process and the machinery to be used. Next, I will share with you the garlic production line configured by Baixin Machinery.


The garlic production line is equipped with different garlic processing machines according to the output. I will share the process flow of the 50-100kg/h small-volume semi-automatic garlic production line and the 800kg/h large-volume automatic garlic production line.

1.800kg/h automatic garlic processing line:

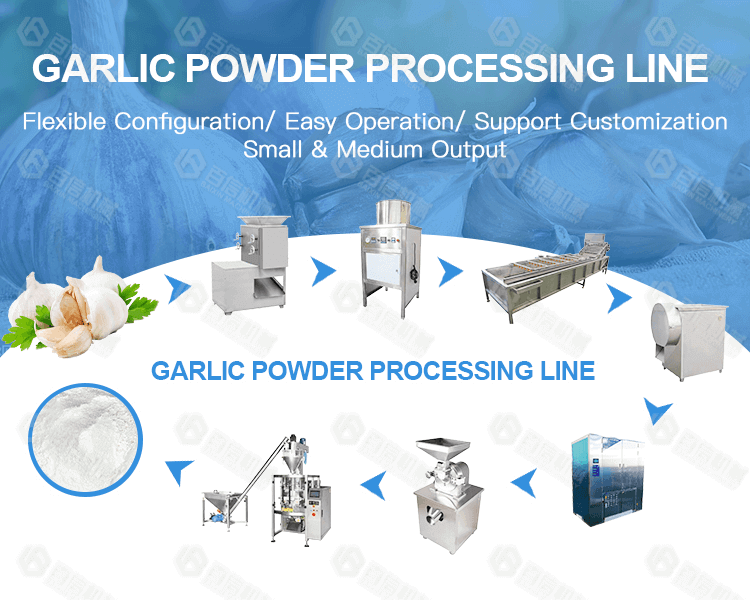

The working process of the large capacity garlic processing line: Garlic clove separation, peeling, washing, slicing, dehydration, drying, grinding, packaging.

Major equipment includes: splitting machine, peeling machine, washing machine, slicing machine, dehydrating machine, dryer, powder grinding equipment, packaging machine,etc., each equipment interacts with each other. Connected by a hoist.

Garlic clove separator: It is mainly used to separate garlic cloves and garlic stalks and partially peel the garlic cloves. Garlic bulbs can be used in any size, with the advantages of no damage to garlic cloves and high peeling rate. The equipment is easy to operate, has high production efficiency, easy cleaning, and low failure rate.
Garlic peeling machine: Adopts electric and pneumatic automatic control to make garlic automatically feed, peel, and separate the garlic from the peel. There is no damage to garlic, and the peeling rate is high.
Garlic washing and rinsing machine: Wash off impurities before slicing, rinse off the garlic film, remove glue and debris to prevent yellowish during drying. The whole is made of stainless steel. Through the effect of water circulation, the garlic cloves will be removed during the initial cleaning of the garlic. After the rinsing, the garlic cloves will follow the conveying system and enter the next process.
Garlic slicing machine: Cut the garlic cloves into even slices. The thickness of the slices should be 1.5- -2mm. The garlic slices processed by this high-efficiency garlic slicer have standard product specifications with uniform thickness and uniform size, which has a good effect on the later drying process. This uniform garlic slice can keep the time and effect of the drying process under the same conditions, so the overall drying effect will also be very high, which meets the processing standards of large- -scale enterprises in the drying of garlic slices.
Air dryer (Dehydrator): Garlic slices can effectively remove water and shorten the drying time before drying after washing. The main purpose is to pre-dehydrate the garlic slices before drying. Because the garlic slicer uses the principle of water washing and slicing，the moisture
content of the garlic slices after cutting is super high, plus the water contained in the garlic slices. If you don't go through the preliminary dehydration treatment and directly send it to the drying host, it will cause serious cooking conditions, which will have a huge impact on the quality of the dried garlic slices. Therefore, the garlic slice dehydration processing equipment is used for preliminary analysis. Dehydration processing is very necessary.
Multi-layer belt garlic slice dryer: The dryer is the key equipment, which determines the effect and quality of garlic slices after processing. Using our mesh belt type garlic slice dryer, with an intelligent control system, can make garlic slices The drying is always maintained in a reasonable drying environment to ensure the effect of the finished product. The use of this garlic slice dryer has the advantages of 1arge processing output, high degree of automation, controllable drying effect and quality, and adjustable drying time. Flexible heat source selection: Coal, wood chips, natural gas, diesel, propane, electricity, etc.
Garlic powder making machine: Grind dried garlic slices to a fineness of 10-120 mesh. The garlic grinder is air-cooled or water-cooled and can work continuously for a long time.
Garlic powder packaging machine: Generally speaking, garlic powder business requires automatic garlic powder packaging equipment. The garlic powder packaging machine has a PLC control system, which is intelligent and controllable, and can be quickly adjusted according to customer packaging requirements. Packaging weight and quantity are automatically adjusted.

800kg/h automatic garlic processing line parameter and garlic powder making machine price：

800kg/h garlic processing line
Number	Name	Power	Size	Output	Price(Dollar)
1	Garlic Clove Separator	2.2KW	985*835*1420mm	1000kg/h	1800
2	Garlic Peeling Machine	0.2KW	1500*1125*2000mm	1000kg/h	5800
3	Bubble cleaning machine	3.37KW	3000*1020*1350mm	1000kg/h	5000
4	Garlic Slicer	1.1KW	970*700*1040mm	500kg/h	1500
5	Garlic Air Dryer	6KW	4000*950*1600mm	1000kg/h	6000
6	Dryer	20.12KW	9000*2000*2500mm	800-1000kg/h	42000-63000
7	Grinder	15KW	1200*1000*2000mm	300kg/h	3000
8	Packing Machine	3.5KW	3000*1500*2600mm	30-60 packs/min	12000
The garlic processing line can be equipped according to the user's requirement and the production demands.					77100-98100

2. 50-200kg/h small output garlic processing line:

The equipment required for the small-scale garlic production line process with an output of 50-200kg/h is garlic separator, garlic peeling machine, garlic dryer, garlic grinder, garlic powder packaging machine and other equipment.

The working process of the small garlic processing line: Garlic clove separation, peeling, slicing, drying, grinding, packaging.

50-200kg/h small output garlic processing line parameter and garlic powder making machine price：

50-200kg/h garlic processing line
Number	Name	Power	Size	Output	Price(Dollar)
1	Garlic Clove Separator	0.74KW	690*710*1050mm	200kg/h	1050
2	Garlic Peeling Machine	0.2KW	640x660x1370mm	200kg/h	950
3	Garlic Slicer	0.75KW	720*540*880mm	300kg/h	1500
4	Dryer	3KW	2100*930*2100mm	200-300kg/h	7500
5	Grinder	5.5KW	750*600*1260mm	30-150kg/h	2000
6	Packing Machine	1.6KW	700*750*1650mm	30-60 packs/min	8000
The garlic processing line can be equipped according to the user's requirement and the production demands.					21000

Garlic processing line advantages：
1: Can be customized.
Configure different production lines according to customer output requirements.
The garlic production line is fully automatic and semi-automatic, and customers can choose according to their own needs.
2: Easy to operate.
The garlic production line is easy to install and can be used after connecting to the power supply. It is reliable to use and easy to disassemble.
3: Garlic is of high quality.
The dryer adopts medium and low temperature drying. After drying, the original color and nutrients of garlic can be completely retained. The equipment is made of stainless
steel, in line with food machinery standards.
4:Flexible heat source selection of dryer: Coal, wood chips, natural gas, diesel, propane, electricity, etc.
5: Wide range of applications.
Most of the machines in the line are not only suitable for garlic, but also for other fruits and vegetables.

The above is the detailed information of a garlic processing production line required. If you are interested in starting a garlic processing business, you are welcome to contact us at any time.

Garlic processing plant video：
