Fish Dehydrator Machine/Fish Dehydrator

Dried fish refers to fresh fish that have been fully sun-dried or dried in a dehydrator. Dried fish is very common in our lives, because some are far away from the sea, it is more difficult to eat fresh fish. If they want to eat fish, they can only dry it into dried fish and transport it to certain places, because dried fish is more durable than fresh fish and is easy to transport. Moreover, dried fish has a unique taste and taste, which is also deeply are favored by consumers.
There are two kinds of drying of fish, one is to use the sun to dry, and the other is to use the dehydrator to dry. The traditional drying method is sun-drying, which is economical and economical, but in rainy days, it cannot be sun-dried, resulting in losses. Moreover, the traditional drying of dried fish will cause contamination of dried fish and bacteria. The fish dehydrator uses a closed-loop design, which is not affected by the weather, and there is no need to worry about the dried fish being polluted. The drying speed is fast, the efficiency is high, and the labor cost is reduced. So what are the fish dehydrators? Next, I will share with you several types of fish dehydrator machines.

First, let's learn about the types of fish dehydrator machines and how to choose a set of fish dehydrator machines that suits you. Fish dehydrator machine are divided into three types: mesh belt fish dehydrator machine, fish dehydrator room and all-in-one fish dehydrator machine.
In terms of output, the continuous mesh belt fish dehydrator machine is suitable for manufacturers with large output. Its output is 300-2000kg/h. The output of the fish dehydrator room machine is smaller than that of the mesh belt fish dehydrator machine, and the output is 100-5000/batch. The output of the all-in-one fish dehydrator machine is the smallest, and its output is 100-1500/batch. It is suitable for agricultural plants or small processing plants. Oven length and mesh belt layers can be customized. We can choose and match them reasonably according to our own processing requirements.

1. Fish dehydrator room

The first type of dehydrator is the fish dehydrator room. The fish dehydrator room is equipped with a trolley with trays and tray racks. When we dry the fishs, we put the fishs in the tray, on the tray rack of the cart, and push it into the fish drying chamber to dry. Fishs are putted on the shelf car and enter the closed cycle drying room for drying without any pollution in the process. The heat source of the fish dehydrator room is air. The heat in the air is absorbed by the heat pump compressor. After being compressed and released, a large amount of high-temperature hot air can be obtained, so as to achieve uniform drying and processing of fishs.

Components of fish dehydrator room

One set fish dehydrator room contains: heat pump dehydrator host, dehydrator chamber, fan frame with fan, trolley with tray. The dehydrator chamber is used 100mm polyurethane insulation board, supporting 304 stainless steel trolleys and trays. The main structure of the fish dehydrator room is divided into: heat pump drying dehumidifier, drying room, hot air circulation system, dehumidification system, automatic intelligent control system, and high-efficiency waste heat recovery dehumidification device.

The working principle of fish dehydrator room

The fish heat pump dryer uses the reverse Carnot principle to let the hot air circulating blower dry the vegatable. Heat Pump Dehydrator Compressor Heat Exchanger Blocked Radiator (External to Machine). Compressor and other equipment make up the refrigerant circulation system. The fan impeller rotates, the outside air enters the oven, passes through the heater, forms hot air, and then enters the studio through the gap of the air distribution plate, and a large amount of hot air in the circulating flow continues to enter the new air inlet for supplementation. The moisture discharged after recovery is discharged from the exhaust port. The whole cycle makes the vegatable heated evenly and achieves the purpose of drying.

Technical parameters of fish dehydrator room

heat pump dryer room list
type	machine size(MM)	Capacity (KG)	power	Qty of fan	fan power	total power（kw）	Qty of cart	Qty of tray	cart size(MM)	tray size(MM)
3P A	3500×2200×2200	200-400	2.25	6	0.25/pc	3.75	6	78	670×810	600×800
8P A	5300×2200×2800	450-750	6	12	0.37/pc	10.44	6	156	1210×870	600×800
15P	7500×3000×2800	900-1500	11.25	12	0.55/pc	17.85	12	312	1210×870	600×800
1P D	1180×680×1800	50-80	1	—	—	1	—	15	—	600×800
3P D	2100×930×2100	120-300	3.5	—	—	3.5	—	40/60	—	600×800
8P D	4000×1960×2050	650-1000	8	—	—	8	8	232	600×800	600×800
The drying machine can be equipped according to the user's requirement and the production demands.

Advantages of fish dehydrator room

1 Wide application. Suitable for vegetable, fruit, seafood, spice etc different kinds of material.
2 High drying capacity. Each hour can drying 3-4kg water.
3 Better drying effect. Can better keep material shape , color , nutrition etc.
4 Simple operating. PLC touch screen control panel , can set up temperature, humidity in advance
5 Low energy consumption. Heat pump system, can save 70% energy.

Other application areas of fish dehydrator room

Heat pumps dehydrator can be used in many applications, in addition to drying fishs can also be used in agriculture, industry, seafood, grain, herbal medicine, construction, paper products, condiments, mineral industry, etc.
1. Dried fishs such as radish, lettuce, pumpkin, carrot, spinach, cassava, etc.
2. Fruits such as apples, lemons, mango slices, dried longan, dried longan, etc.
3. Dried fish such as sausage, beef, duck, ham, etc.
4. Others it can dry noodles/wooden/incense/herbs/floss etc.

2. All-in-one fish dehydrator machine

The another one is the all-in-one fish dehydrator machine. The drying principle is the same as that of the fish dehydrator room. The all-in-one fish dehydrator machine is equipped with a cart with trays and tray racks. When drying fishs, we put them in trays, put them on the tray racks of the cart, and then push them into the fish drying chamber for drying.
The heat source of the fish integrated dehydrator is air energy. The heat in the air is absorbed by the heat pump compressor. After compression and release, a large amount of high-temperature hot air can be obtained, so as to achieve continuous and uniform drying and processing of fishs. The operation of this all-in-one drying unit is relatively simple, simply plug in and dry.

Components of all-in-one fish dehydrator machine

One set all-in-one fish dehydrator machine contains: power jack, water outlet,exhaust air outlet, supporting wheels, PLC controller pancl, door lock, observation window,circulating air inlet, outlet for hot and dry air, PP tray, stainless steel tray, supporting racks for trys. The fish all-in-one machine has compact structure, good energy-saving effect, wide application range, high drying quality, convenient operation, simple installation and disassembly. It is the best drying equipment for small businesses, drying experiments and scientific research. The user only needs to connect the power to use, it is the easiest to operate fish dehydrator.

Technical parameters of all-in-one fish dehydrator machine

All-in-one fish drying machine list
type	machine size(MM)	Capacity (KG)	power	total power（kw）	Qty of cart	Qty of tray	cart size(MM)	tray size(MM)
1P	1180×680×1800	50-80	1	1	—	15	—	600×800
3P	2100×930×2100	120-300	3.5	3.5	—	40/60	—	600×800
8P	4000×1960×2050	650-1000	8	8	8	232	600×800	600×800
The drying machine can be equipped according to the user's requirement and the production demands.

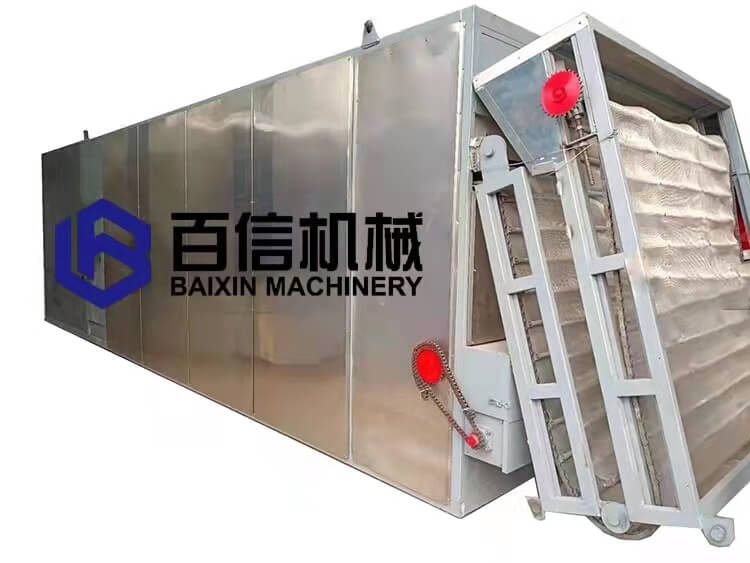

3. continuous mesh belt fish dehydrator

And then, let's take a look at the continuous mesh belt fish dehydrator with the largest output. Mesh belt fish dehydrator have a wide range of heat sources such as coal heating, gas heating, steam heating, biomass pellet heating or electric heating. It is a multi-layer continuous drying structure. When drying fishs, just put the fishs in the feeding port, and the fishs will enter the dehydrator with the feeding conveyor for drying.
Fishs are dried and dehydrated layer by layer from top to bottom. The drying speed is fast and the production efficiency is high, which is very suitable for the drying and processing of large quantities of fishs.

Components of continuous mesh belt fish dehydrator

One set continuous mesh belt fish dehydrator contains: homogenizer, feeding conveyor,dehydrator host, output conveyor, observation door, heat source, air intake system, control panel. The fish dehydrator consists of 4 parts, namely the feed conveyor, the main machine of the mesh belt fish dehydrator, the heat source and the discharge conveyor. The reformer provides heat, and the through-flow mesh belt fish dehydrator is the main body of the drying equipment, which consists of a cabinet and multi-layer conveyor belts; the electrical control system controls the start, operation and stop of the entire equipment. With the cooperation of other auxiliary components, the drying equipment completes the drying and discharging process of food, and realizes the drying process of food drying.

The working principle of continuous mesh belt fish dehydrator

Baixin continuous mesh belt fish dehydrator is a continuous production drying equipment. The main heating methods are electric heating, steam heating and hot air heating. Its main working principle is to distribute the material evenly in the network. Through the operation of the machine, the fish moves in the dehydrator, and the hot air extracts the water vapor of the fish. So as to achieve the purpose of drying. The working temperature is 40-120 degrees Celsius. The drying cycle is 1-5 hours. Mainly used for agricultural and sideline products such as fruits and fishs, Chinese herbal medicines, etc. The equipment is easy to operate, saves time, has a healthy drying process, and protects the environment.

Technical parameters of mesh belt fish dehydrator

continuous mesh belt dryer list
Model	operation temperature	drying time	thickness of the material	the size of motor	capacity	heat source	total power
BX-2*6M	40-120℃	0.5-5h	50-200mm	6*2*2.5	200-400kg/h	electricity	66.5kw
						natural gas/propane	12.22kw
						coal/wood chips	13.72kw
						steam	11.22kw
BX-2*9M				9*2*2.5	500-800kg/h	electricity	79.76kw
						natural gas/propane	20.12kw
						coal/wood chips	23.12kw
						steam	16.62kw
BX-2*12M				12*2*2.5	1000-1500kg/h	electricity	153.12kw
						natural gas/propane	33.12kw
						coal/wood chips	36.12kw
						steam	25.62kw
door in Color steel,baffle in Galvanized,the main frame in Carbon steel.

The above are the three fish dehydrator machines we commonly use. At the same time, our company also produces and microwave dehydrator machines. If you are interested in fish dehydrator machines or want to know more about fish dehydrator machines, please feel free to contact us.
